QG series steel pipe, the outer wall cleaning machine for steel pipe and steel pipe products inside and outside surface pellet blasting treatment, removal of the oxide layer and steel pipe products inside and outside surface pellet blasting treatment, removal of the oxide layer and the welding slag and other debris, showing a metallic luster, to use paint and coating of workpieces.

Specifications

Long Life Service of consumable parts
PLC control and Simple Operation
Good Cleanness Effectness

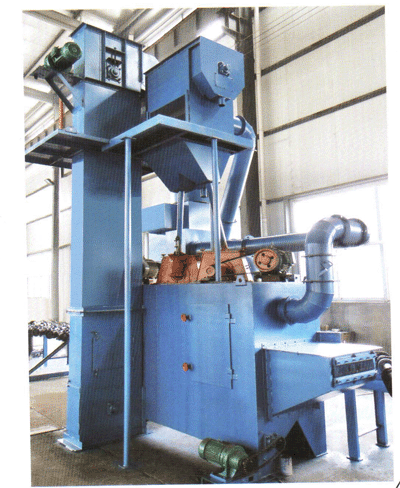

QG series of steel pipe outer wall of shot blasting machine

Workpiece conveyor system
A workpiece conveyor system frequency stepless speed and Industry both in synchrony, but also independent action.
Blasting Room roller equipped with special materials wear jacket.
Three plate chain conveyor "V" structure, paint steel plate short-term contact to avoid the destruction of the film.
Shot blasting
A workpiece measuring high photoelectric switches and brake motors, in the outdoor shot blasting, anti-dust interference.

Two workpiece mesurement device to automatically adjust for the number of pills gates open.
Three advanced cantilever centrifugal shot blasting, shot blasting arranged through computer simulation. Projectile to avoid the roller, uniform workpiece covering.
Projectile cleaning
A roll sweep, side-scan and high pressure air purge
Pills material cycle purification
A full curtain winnowing separator
2 dedicated polyester line core elevator belt,
Pneumatic projectile controller
4 projectile circulatory system power points are located failure alarm
Shot blasting dust removal system
An optional cyclone, bag integrated dust collector, dust emissions and meet the national standard
Spray booth
A high-pressure airless spray pump units, one spare
Two standard linear guide support car, car trip both ends of the inverter buffer
Workpiece detection and the transmission mechanism and gun-separated set, no interference of the mist, easy to clean up paint dirt
