hook sand blasting equipment from China manufacturer - QINGDAO XICHENG FOUNDRY MACHINERY CO.,LTD.

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Q38

Production Capacity: 30 sets/month

Delivery Date: 25-30DAYS

Certification: ISO 9001:2000

Means of Transport: Ocean,Land

Packing: WOODEN

Automation: Automatic

Brand Name: XICHENG

sand blasting equipment
1, High efficiency, long life
2, competitive price
3, CE, ISO9001
4, OEM

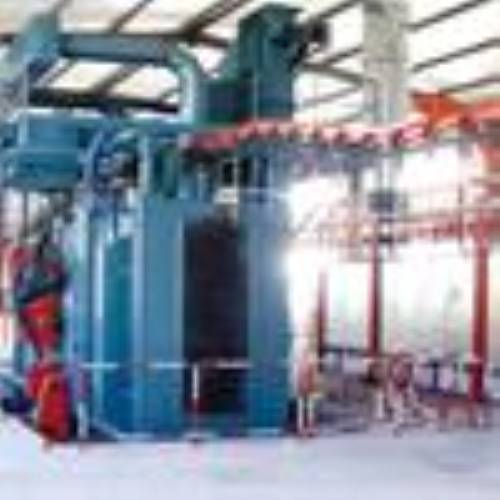

double route hook sand blasting equipment

This serie of double route hook sand blasting equipment uses multiple-step and rotating point fixed method to clean away the antiquated sand and oxidation layer from the surface quickly, and makes the surface bright and clean.Q38 double route hook sand blasting equipment is mainly used for the fitting of vehicles such as the bolster, side frame, coupler and coupler yoked, also for cleaning the casting and workpieces with the similar size.
specification of Q38 double route hook sand blasting equipment

diameter	Q383	Q385	Q3810
Cleaning workpiece size(mm)	800*1200	1000*1500	1000*2500
Number of work position	2	2	2
Quantity of impeller head	4	4	6
Impeller head volume (KG/min)	4*250	4*250	6*250
Impeller head power (KW)	4*15	4*15	6*15
Max hangering weight (KG)	300	300	1000
Productivity hanger/h	30-60	30-60	40-60
Size of the cleaning room (mm)	768020002900	768020002900	768020003800
Total air rate volume (m/h)	17000	19000	19000
Total power( except for dust cleaning) KW	73,15	73,15	114,72
