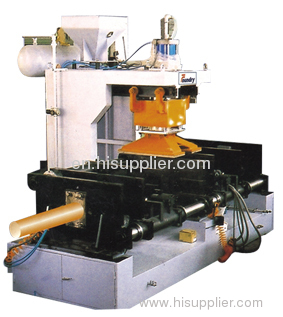

this core shooter mould clamping mould by two cylinder fixed around curved board drive or so slide along the two guide shaft back and forth movement, fixed die spring push core, moving die reverse push rod top core.
2. Shoot head is designed for mobile, radiation cavity sand and shoot sand respectively in two different location. Mobile shot head before and after the four roller hanging in the guide. Shoot head shot cavity by four pressure spring and shell, combining mobile radiation driven by cylinder head in sand, shoot sand work run back and forth, shoot sand cavity after stress will core shooting machine head and core box compression pressure to loosen after pressure spring will shoot head automatic reset.
3. Shoot sand mechanism consists of a pneumatic send sand device, sand institutions and shoot sand device composition.
1) sand mechanism at the top is the sand bucket, below is sand ram. It with mobile shot head shot cavity anastomosis, core shooter sand inflow shot cavity, when mobile shot head into the shot sand station when disc spring reset, dragging disc along the orbit close sand transition mouth.
2) shot sand device by the air bag, shoot sand exhaust valve, blow pressure head, pressure cylinder composition. The blow by head pressure cylinder driving, can move up and down, to realize the compression, loosen, when shot head into the shot sand station, head to shoot mouth cavity will shoot head pressing and core shooter box pasting, open shot sand valve, air bag compressed air, the electromagnetic valve head into the shot cavity, its into core box, complete shoot sand movement, the residual air the head by electromagnetic switching valve discharge, shoot head back at the same time, blow sand device will go more than sand scraping.
3) curing time by the or so die curing time machine to control, curing time, alarm warning.

core shooter shoot head
